304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

Nome da marca: COMESH
Número do modelo: CM-CB2511201
MOQ: 2 m
preço: USD35-55 per meter
Condições de pagamento: D/A,D/P,T/T,Western Union,
Capacidade de abastecimento: 500m pela semana
Informações pormenorizadas
Lugar de origem:
China
Certificação:
FDA
Material:
Aço inoxidável 304
Largura:
800 mm ou personalizado
Comprimento:
6 m por rolo ou personalizado
Diâmetro do fio:
1,5 mm, ou personalizado
Diâmetro da haste:
6 mm, ou personalizado
Tom espiral:
8 mm, ou personalizado
Passo da corrente:
38,1 mm ou personalizado
Detalhes da embalagem:
Os PP ensacam o interior, e então a caixa de madeira fora
Destacar:

304 stainless steel conveyor belt

,

chain driven freezer conveyor belt

,

balance weave spiral wire mesh

Descrição do produto
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
This kind of Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt is especially designed for spiral or round conveyor as well as straight-running conveyor. With the ability to side flex, the belt can also be used for conveyors arranged to go around obstacles.The flexible rod belt is popular in the food industries, including cooling, cooking or freezing products.
Product Specifications
Material Stainless steel 304, or customized
Width 800 mm, or customized
Length 6 m per roll, or customized
Wire Diameter 1.5 mm, or customized
Rod diameter 6 mm, or customized
Spiral pitch 8 mm, or customized
Chain pitch 38.1 mm, or customized
Available Materials
1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUS 330 (1150°C)
4) SUS 304 (400°C)
5) SUS 316 (1000°C)
6) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
7) SUS 321 (750°C)
8) SUS 410 (700°C)
9) SUS 430 (700°C)
10) Various metal materials as per your requirements
Key Features
  • Material: High-quality stainless steel construction provides excellent resistance to corrosion and high temperatures
  • Design: Spiral wire mesh offers flexibility and strength for transporting various products
  • Chain Driven: Smooth and reliable movement along the conveyor path
  • Customization: Available in various sizes, wire diameters, and mesh configurations
Applications
  • Food processing (especially fried foods industries)
  • Packaging
  • Material handling
  • Automotive assembly lines
Packing & Delivery

Packing: PP bag inside, and then wooden case outside.

Delivery: Can be shipped by sea or air, express services including DHL, FEDEX, TNT, SF, UPS, etc.

Product Images

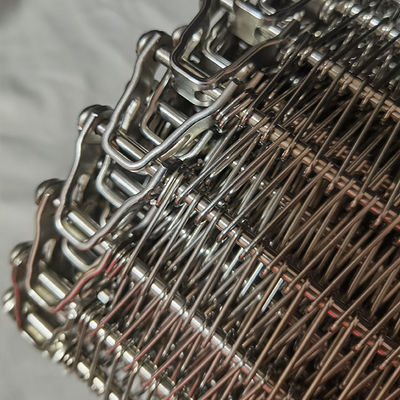

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt 0

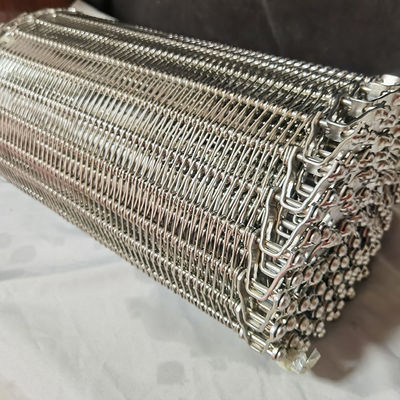

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt 1

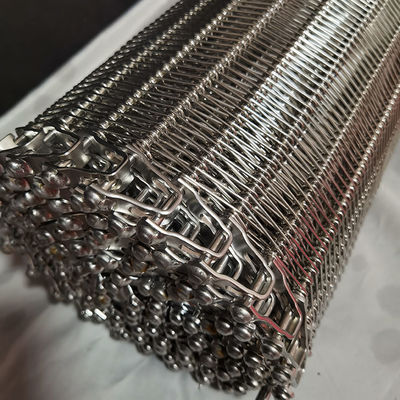

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt 2
