Detalhes dos produtos

Para casa produtos

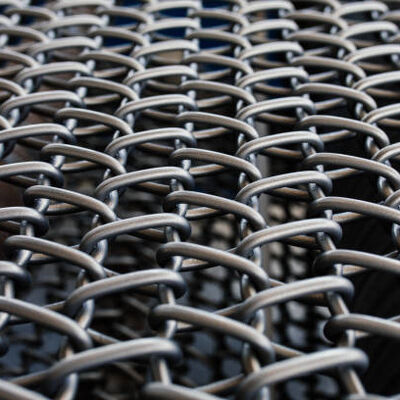

Wire Mesh Conveyor Belt chain driven metal mesh belt with conventional weave offering unobstructed openings for product transfer

Wire Mesh Conveyor Belt chain driven metal mesh belt with conventional weave offering unobstructed openings for product transfer

Nome da marca:	Comesh
Número do modelo:	Co-lo
MOQ:	10 metros
preço:	USD 5.99-65.99per meter
Condições de pagamento:	L/C, T/T
Capacidade de abastecimento:	1000 metros por semana

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

FDA

Comprimento da correia:

Personalizável

Estrutura:

Filho plano, tecido equilibrado, etc.

palavras-chave:

Cinturão transportador de malha metálica

Diâmetro do fio:

0,5 mm - 5mm

Pisa de ferramenta:

8.2 mm 8.5 mm

a outra palavra-chave:

Correia transportadora espiral

Ceritificado:

Certificado FDA/ISO 9001:2008

Pesquisa quente:

correia transportadora de malha de arame

Resistência à tracção:

Até 1000 N/mm²

Diâmetro:

0,5-5 mm

Buraco:

Personalizado

Vantagem:

Resistência à pressão

Aplicativos:

Fundição

Estilo:

correia transportadora de corrente

Detalhes da embalagem:

Caixa de madeira

Destacar:

chain driven wire mesh conveyor belt

metal mesh belt with conventional weave

wire conveyor belt for product transfer

Descrição do produto

Product Description

Chain-Driven Metal Mesh Belts

Chain-driven metal mesh belts should be considered whenever timing, transfer, and/or positive belt drive are important … in cases such as travel-up inclines, under heavy loads, for long distances, through quenching liquids, cooking oils, or other slippery conditions.
Chain-driven belts are also the only belts that are self-supporting. They can provide efficient operation in applications where friction-driven belts would not be desirable. Any mesh can be used in a chain-driven construction, but the selection is made on the basis of what is needed to support the product.
Balanced weave should be given first consideration, as it is economical and appropriate for most conditions. Gratex weave provides a closer mesh, while a Duplex weave is a close mesh that also provides strength and a straight-through opening. A conventional weave provides unobstructed openings.

Specification

product name	Stainless Steel Wire Mesh Belt
Application	Bakery Ovens, Food Equipment, Belt Con
Transport Package	Wooden Box
Cross Wire	1mm,1.2mm,1.5mm,1.8mm,2mm
Rod Wire	2-6mm
Belt Wide	0.5-2m
Voltage	220V 380V
Work Temp	-40celsius ~ 90celsius

Chain Selection

Chains are normally selected according to the strength and speed required. The most frequently used types of chain for metal mesh conveyors are roller chain, employed for most room-to-medium temperature applications, and pintle chain which is recommended for heavier loads and higher temperatures.
Due to the important and specialized nature of the applications requiring these products, each inquiry is reviewed thoroughly. Our goal is to supply the most suitable belt for your specific application. We strive to provide solutions for each situation, assuring value for our customers. Our engineers and technical support group are involved in every specialty belt inquiry and order.

Application

Typical Applications

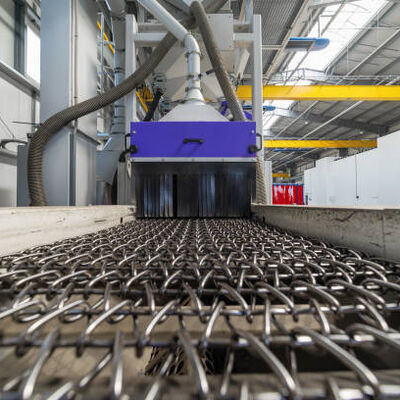

In food processing, chain-driven belts are used in washing, drying, cooking, freezing, dewatering, and blanching operations. In other applications, metals, electronic parts, chemicals, ceramics, leather, lumber, textiles, rubber, and many other products are moved through a host of processes where the positive drive is needed.
